QV-ELF Quick Vision ELF Compact Vision Measuring Machine
|
| QV-ELF Quick Vision ELF Compact Vision Measuring Machine |
|
QV-ELF Quick Vision ELF Compact Vision Measuring Machine
Series QVE
Features
Compact device for powerful and economic vision measurement.
CNC- controlled
Triangular pattern focusing for low-contrast surfaces
Programmable magnification changer 1X, 2X and 6X
High-precision measurement lens system 1X, 2.5X, 5X, 10X and 25X
High-resolution CCD black and white camera
Resolution 0.1 μm (0.0001mm)
“One-click tool” technology for optimum edge detection
User-friendly QVPAK software
line drawings videos literature
Specifications
Name Quick Vision- ELF
Order Number QV-E202

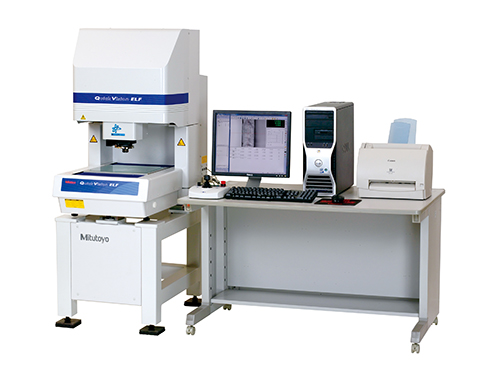

Image QV-ELF.jpg
Measuring Range X-Axis 0-9.84in 0-250mm
Measuring Range Y-Axis 0-7.87in 0-200mm
Measuring Range Z-Axis 0-7.87in 0-200mm
Resolution 0.1µm / reflective-type linear encoder
Camera CCD camera B&W
Accuracy E1xy-2 + 3L/1000µm
E1z- 3 + 5L/1000µm
Max.drive speed(x/y/z) 200mm/s
Illmination-PRL Vertical reflected stage light-White LED,
Coaxil- White LED
Programmable Ring light-White LED
Magnification change system Programmable power turret(1x,2x,6x)
Stage Glass Size 12.28x10.59in 312x269mm
Max. workpiece Load 33lbs 15kg
NameQuick Vision- ELF
Order NumberQV-E202
Measuring Range X-Axis0-9.84in
0-250mm
Measuring Range Y-Axis0-7.87in
0-200mm
Measuring Range Z-Axis0-7.87in
0-200mm
Resolution0.1µm / reflective-type linear encoder
CameraCCD camera B&W
Accuracy E1xy-2 + 3L/1000µm E1z- 3 + 5L/1000µm
Max.drive speed(x/y/z)200mm/s
Illmination-PRLVertical reflected stage light-White LED, Coaxil- White LED Programmable
Ring light-White LED
Magnification change systemProgrammable power turret(1x,2x,6x)
Stage Glass Size12.28x10.59in
312x269mm
Max. workpiece Load33lbs
15kg - See more at:
http://ecatalog.mitutoyo.com/QV-ELF-Quick-Vision-ELF-Compact-Vision-Measuring-Machine-C1024.aspx#sthash.y8ugYh99.dpuf Series QVE
Features
Compact device for powerful and economic vision measurement.
- CNC- controlled
- Triangular pattern focusing for low-contrast surfaces
- Programmable magnification changer 1X, 2X and 6X
- High-precision measurement lens system 1X, 2.5X, 5X, 10X and 25X
- High-resolution CCD black and white camera
- Resolution 0.1 μm (0.0001mm)
- “One-click tool” technology for optimum edge detection
- User-friendly QVPAK software
- See more at:
http://ecatalog.mitutoyo.com/QV-ELF-Quick-Vision-ELF-Compact-Vision-Measuring-Machine-C1024.aspx#sthash.y8ugYh99.dpuf |
|
|
|
|
|
