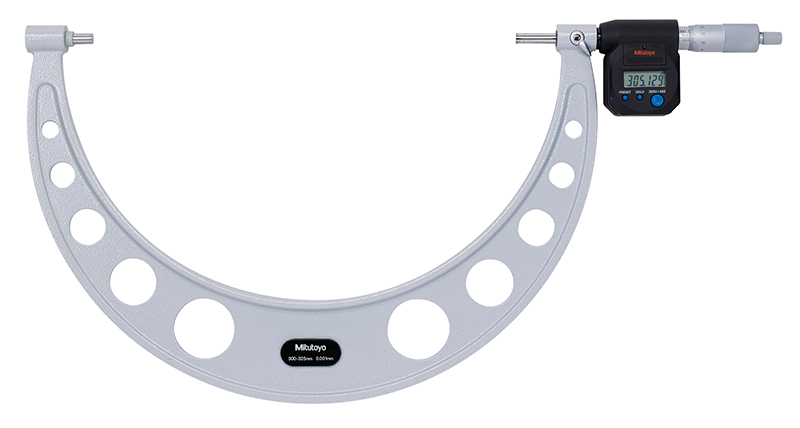

Digimatic Micrometer Series 293
Giá : Liên Hệ
Digimatic Micrometer Series 293

Digimatic Micrometer Series 293

Series 293
Features
Technical Data
    Accuracy: Refer to the list of specificatictions
    Resolution: 0.001mm or .00001"/0.001mm
    Flatness: 0.6µm / .000024”
    Parallelism: 5µm / .0002” for models up to 375mm / 15”
    6µm / .00024” for models up to 475mm/19”
    7µm / .00028” for models over 500mm / 20”
    Measuring faces: Carbide tipped
    Display: LCD
    Battery: SR44 (2 pcs.), 938882
    Battery life: Approx. 1.8 years under normal use

    Function
    Preset, Zero-setting, Power ON/OFF, Data hold, Data output,
    inch/mm conversion (inch/mm models)
    Alarm: Low voltage, Counting value composition error

    Optional Accessories
    959149: SPC cable (40"/1m)
    959150: SPC cable (80"/2m)
    04AZB512: SPC cable (L-type(40'/2m)
    04AZB513: SPC cable L-type(80"/2m)
Inch/MetricMetric
Order NoImagePartsRangeAccurayRemarks
293-782293-782.jpg293-782.pdf
Parts Break Down		12-13in
304.8-330.2mm		±.0003inwith ratchet stop
293-783293-783.jpg293-783.pdf
Parts Break Down		13-14in
330.2-355.6mm		±.0003inwith ratchet stop
293-784293-784.jpg293-784.pdf
Parts Break Down		14-15in
355.6-381mm		±.00035inwith ratchet stop
293-785-293-785.pdf
Parts Break Down		15-16in
381-406.4mm		±.00035inwith ratchet stop
293-786-293-786.pdf
Parts Break Down		16-17in
406.4-431.8mm		±.00035inwith ratchet stop
293-787293-787.jpg293-787.pdf
Parts Break Down		17-18in
431.8-457.2mm		±.0004inwith ratchet stop
293-788-293-788.pdf
Parts Break Down		18-19in
457.2-482.6mm		±.0004inwith ratchet stop
293-789293-789.jpg293-789.pdf
Parts Break Down		19-20in
482.6-508mm		±.0004inwith ratchet stop
- See more at: http://ecatalog.mitutoyo.com/Digimatic-Micrometer-Series-293-C1091.aspx#sthash.YO1GjGRZ.dpuf
