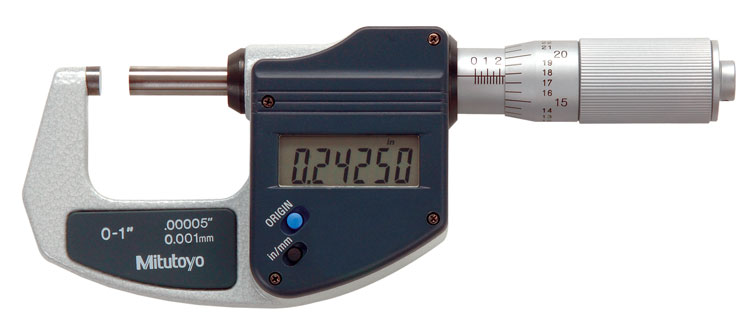

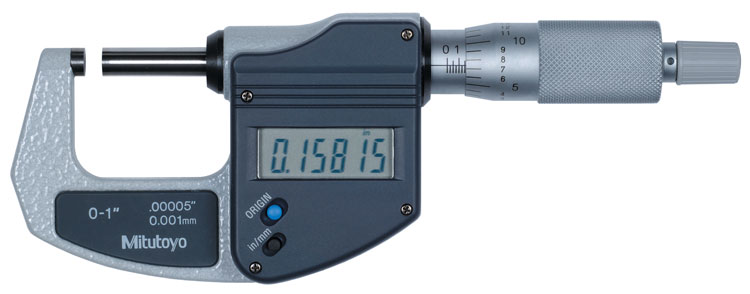

Digimatic Micrometer Series 293 MDC-Lite

• Provided only with a zero-set key for easy origin setting.
• A ratchet stop or friction thimble for a constant measuring force.
• Measurement readout with large characters on the LCD screen.
• No spindle clamp. No data output
• Supplied in fitted plastic case




Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.001mm or .00005"/0.001mm
Flatness: 0.3µm / .000012”
Parallelism: 2µm / .00008”
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 1.2 years under normal use

Function
Origin-set, Automatic power on/off, inch/mm conversion
(inch/mm models)
Alarm: Low voltage, Counting value composition error
